一、特点 Characteristic
卧式自动分切机是我厂为塑料薄膜、无纺布、塑料制袋、造纸等工厂生产的分切设备。本机集机、电、光、气于一体化，经精心设计、精细加工、精密装配而成，具有分切速度高、切膜整齐、运行平稳、操作方便等优点，是十分理想的分切设备。BOPP、OPP、CPP、PET、PE、POF无纺布、纸张、复合膜、镀铝膜、牛皮纸等。
Horizontal automatic slitting machine is our factory for plastic film, non-woven
fabric, plastic bags, paper and other factories production slitting equipment. This machine integrates machine, electricity, light and gas, and is made by careful design, fine processing and precise assembly. It has the advantages of high cutting speed, NEAT cutting film, stable operation and convenient operation. Bopp, OPP, CPP, PET, PE, POF non-woven
fabric, paper, composite film, aluminized film, Kraft Paper, etc. .
二、主要技术参数 Main Technical Parameter
1 | 型号 | Model | YF-WS1100 |
2 | 原料宽度 | Max Material Width | 1100mm |
3 | 放卷直径 | Max Unwinding Diameter | 600mm |
4 | 收卷直径 | Max Rewinding Diameter | 600mm×2 |
5 | 放卷纸芯直径 | Paper core Diameter | φ76mm |
6 | 收卷纸芯直径 | Unwinding roller diameter | φ76mm |
7 | 分切速度 | Slitting Speed | 30-120m/min |
8 | 成品宽度 | The width of finished product | 25-1100mm |
9 | 分切精度 | Slitting precision | ±0.2mm |
10 | 机器功率 | Total power | 3..5kw/220v |
12 | 机器重量 | Machine Weight | 950kg |
13 | 外形尺寸 | Machine Dimension | 2200×1800×1300mm |

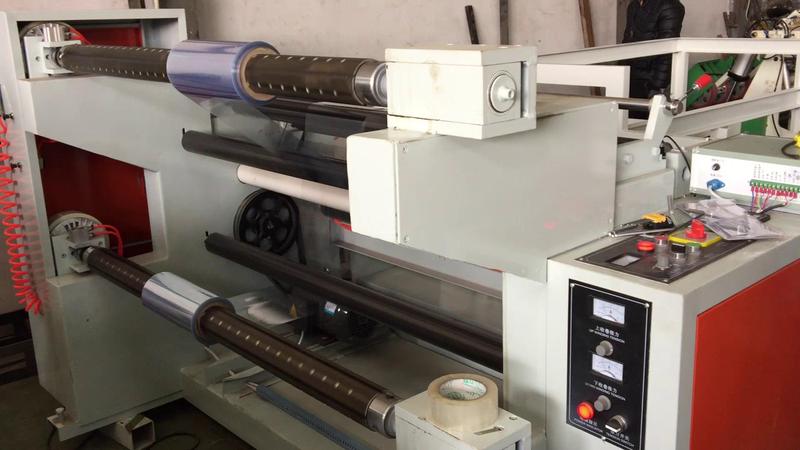

三、机器实拍图 Machine shot image
